The Best Tripod Turnstile Gate for Variety System in Malaysia

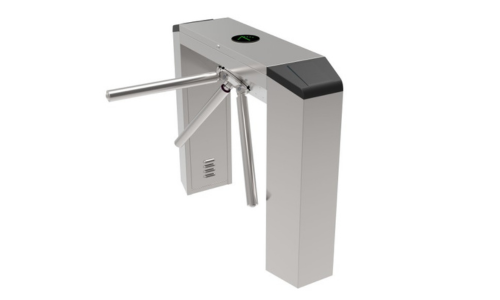

TTS470 – MAG Motorized Tripod Turnstile
- Indoor Access Control at Waist Level
- Standard Dimensions for Durable Performance
- Semi-Automatic Arm Activation
- Cost-Effective Solution for Medium to High Foot Traffic
- Dual-Layer Anti-Tailgating Security

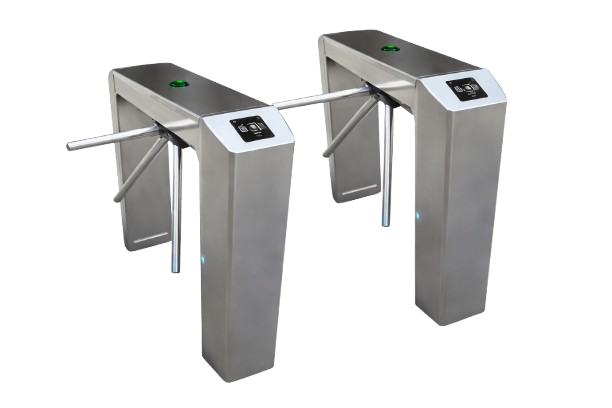

TTS312-MAG Economical Tripod Turnstile
- Waist-High Access Control (Indoors)
- Compact Design for Limited Spaces
- Semi-Automatic Arm Operation
- Cost-Effective for Moderate Foot Traffic
- Dual-Layer Anti-Tailgating Security
HIK VISION DS-K3G501SX Tripod Trunstile
- Barrier open/closed, free accessing, forbidden mode are selectable
- Bidirectional (Entering/Exiting) lane
- Remote control and management
- Online/offline operation.
- Fire alarm passing
TTS470 – MAG Motorized Tripod Turnstile
The TTS470 motorized tripod turnstile is a specialized pedestrian gate commonly deployed at the entrances of high-traffic public venues. Outfitted with an access control reader, its primary purpose is to rigorously control and restrict unauthorized entry, all the while preserving a friendly and inviting environment for visitors. It’s important to note that this particular turnstile is engineered to allow only individuals to pass through, ensuring that luggage or larger items remain on the outside. Notably, the TTS470 stands out as the pinnacle of anti-tailgating technology while requiring minimal maintenance, making it the top choice among all pedestrian gate options for reliability and security
Specification TTS470 – MAG Motorized Tripod Turnstile
| Description | Parameter |
| Power supply | 220V ± 10%AC 50/60Hz |
| Power consumption | Idle 16W, Operating DC24V |
| Roating speed of the motor | 800 round/min |
| Pass speed | 20-30 person per minute |
TTS312-MAG Economical Tripod Turnstile
The TTS312 semi-automatic mini tripod turnstile is a specialized pedestrian gate designed for installation at various entrance points. Equipped with an access control reader, its primary function is to diligently manage and restrict unauthorized access, ensuring that a warm and inviting atmosphere is maintained at the location. It’s important to note that this turnstile is specifically engineered to permit the passage of individuals only, and it does not accommodate the passage of luggage or larger items. Remarkably, the TTS312 boasts the smallest size while delivering the most effective anti-tailgating security among all available pedestrian gate options, making it an excellent choice for compact spaces that require stringent access control.
Specification TTS312-MAG Economical Tripod Turnstile
| Description | Parameter |
| Power supply | 220V ± 10%AC 50/60Hz |
| Power consumption | Idle 16W, Operating DC24V |
| Roating speed of the motor | 800 round/min |
| Pass speed | 20-30 person per minute |
HIK VISION DS-K3G501SX Tripod Trunstile
The DS-K3G501 series tripod barrier is designed to detect unauthorized entrance or exit. By adopting the turnstile integratedly with the access control system, person should authenticate to pass through the lane via presenting IC or ID card, scanning QR code, etc. It is widely used in attractions, stadiums, construction sites, residences, etc.
Specification HIK VISION DS-K3G501SX Tripod Trunstile
| MCBF | > 3 million times |
| Card Capacity | 60,000 |
| Event Capacity | 180,000 |
| Throughput | More Than 35 persons per minute The actual throughput is affected by the person passing rate and passing method |
| Card Type | EM,M1 |
| Weight | Without package: 45kg (99.2 Ib) With package: 69kg (152.1 Ib) |
| Approval | CE/FCC/CB/RoHS/REACH/WEEE |
| Lane Width | 550 mm |
| Module Selection | YES |
| Authentication Mode | Card, Face, Fingerprint, QR code |
| Power Supply Method | 100 to 240 VAC; 50 to 60 Hz |
| Working Temperature | -20 C – 65 C (-4 F to 149 F) |
| Working Humidity | 0% – 95%(no condensing) |
| Dimensions | Without package: 232 mm × 960 mm × 1208 mm (9.1″ × 37.8″ × 47.6″) With package: 390 mm × 1185 mm × 1320 mm (15.4″ × 46.7″ × 52.0″) |
| Barrier Material | Stainless steel pipe |

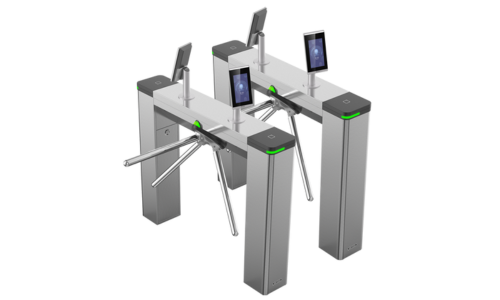

Face & Card Access Tripod Turnstile Gate: ST-K3-501
The ST-K3-501 tripod turnstile is integrated with face, card access control terminal to prevent unauthorized access. It can minimize the manual person identity verification process and increase productivity. It is widely used in construction sites, dormitory, factory plan and residences area. This tripod turnstile is compatible and to work with Smart Touch Smartface Face Recognition Reader Model ST-671, ST-70T and ST-5671
Specification Tripod Turnstile Gate: ST-K3-501
| Power Voltage | 100 to 240VAC; 50 to 60 Hz |
| Throughput | More than 30 persons per minute (The actual throughput is affected by the person passing rate and passing method) |
| Open Angle | 120° |
| Approval | CE/FCC/CB/ROHS/REACH/WEEE |
| Pedestal Material | SUS304 Stainless Steel |
| Open Direction | Single / Double (Bi-directional) |
| Work Environment | Indoor / Outdoor |
| IP Rating | IP54 |
| Width of Passage | <550mm |
| Length of Bar | 510mm |
| Operation Condition | -15°C – 60°C |
| Relative Humidity | Non-Condensation |
| Service Life (MCBF) | ＞3 million times |
| Input Signal | 12V DC |
| Working Current | <2000mAh |
| Dimension | 1208 x 232 x 960mm (Long*Width*Height) |
The Best Full Height Turnstile Gate for Variety System in Malaysia

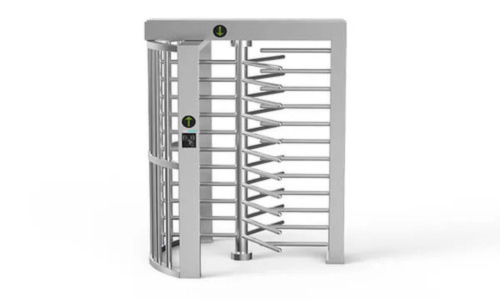

Full Height Turnstile Gate - Single - NW-FH-01​
- Full Height Turnstile Gate with single or bi-directional.Â
- Prevent anti-directional access, access granted and allow to pass through one direction at a time, the other side will remain lock; the timing can be configured.
- Self-resetting function will allow the turnstiles to lock when there’s no passenger passes through.
- Programmed Fail Safe or Fail Secure Mode.
- LED Directional indicator function to display authorize passage on both direction.
- Equipped with Micro-Controller board with counting function using LED digital display (Optional).
- Equipped with Micro-Controller board with memory function for group access (Optional)
- Seamless entry upon receiving control signal, using optical hole focus technology.
Specifications of Full Height Turnstile Gate - Single - NW-FH-01
| Power Voltage | AC220+10%,50Hz |
| Drive Voltage | AC12V+AC18V |
| Open Angle | 90°/120° |
| Pass Speed | Less than 30 person/minutes |
| Structure | Frame on 304 Stainless Steel Cover |
| Open Direction | Single / Double (Bi-directional) |
| Work Environment | Indoor / Outdoor |
| IP Rating | IP43 |
| Width of Passage | <630mm |
| Length of Bar | 600mm |
| Operation Condition | -15°C – 60°C |
| Relative Humidity | Non-Condensation |
| Service Life | > 6 million |
| Input Signal | 12V DC |
| Working Current | <2000mAh |
| Dimension | 1600 x 1500 x 2300mm (Long*Width*Height) |
Full Height Turnstile Gate- Double - NW-FH-01​​
- Double Full Height Turnstile with single or bi-directional.Â
- Prevent anti-directional access, access granted and allow to pass through one direction at a time, the other side will remain lock; the timing can be configured.
- Self-resetting function will allow the turnstiles to lock when there’s no passenger passes through.
- Programmed Fail Safe or Fail Secure Mode.
- LED Directional indicator function to display authorize passage on both direction.
- Equipped with Micro-Controller board with counting function using LED digital display (Optional).
- Equipped with Micro-Controller board with memory function for group access (Optional)
- Seamless entry upon receiving control signal, using optical hole focus technology.
Specification of Full Height Turnstile Gate- Double - NW-FH-01
| Power Voltage | AC220+10%,50Hz |
| Drive Voltage | AC12V+AC18V |
| Open Angle | 90°/120° |
| Pass Speed | Less than 30 person/minutes |
| Structure | Frame on 304 Stainless Steel Cover |
| Open Direction | Single / Double (Bi-directional) |
| Work Environment | Indoor / Outdoor |
| IP Rating | IP43 |
| Width of Passage | <630mm |
| Length of Bar | 600mm |
| Operation Condition | -15°C – 60°C |
| Relative Humidity | Non-Condensation |
| Service Life | > 6 million |
| Input Signal | 12V DC |
| Working Current | <2000mAh |
| Dimension | 1600 x 1500 x 2300mm (Long*Width*Height) |
The Best Flap Barrier Gate for Variety System in Malaysia
Full Height Turnstile Gate- Double - NW-FH-01​​
- Double Full Height Turnstile with single or bi-directional.
- Prevent anti-directional access, access granted and allow to pass through one direction at a time, the other side will remain lock; the timing can be configured.
- Self-resetting function will allow the turnstiles to lock when there’s no passenger passes through.
- Programmed Fail Safe or Fail Secure Mode.
- LED Directional indicator function to display authorize passage on both direction.
- Equipped with Micro-Controller board with counting function using LED digital display (Optional).
- Equipped with Micro-Controller board with memory function for group access (Optional)
- Seamless entry upon receiving control signal, using optical hole focus technology.
| Power Voltage | AC220+10%,50Hz |
| Drive Voltage | DC24V5A |
| Communication Port | RS485 |
| Gate Opening & Closing Time | 0.5s |
| Structure | Frame on 304 Stainless Steel Cover |
| Open Direction | Single / Double (Bi-directional) |
| Work Environment | Indoor / Outdoor |
| IP Rating | IP43 |
| Width of Passage | <260mm |
| Length of Bar | 600mm |
| Operation Condition | -15°C – 60°C |
| Relative Humidity | 95% Non-Condensation |
| Service Life | > 3 million |
| Input Signal | 12V DC |
| Working Current | <2000mAh |
| Dimension | 1000 x 300 x 980mm (Long*Width*Height) |
Half Height Swing Barrier Gate - ST-SW-03​
Anti-Pinch mechanical structure, anti-bumps function, when the swing arm reset process meet resistance,
within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg ).
Anti-intrusion function, when the gate signal is not received, the arm will locked automatically.
With automatic reset function, after the barrier gate opening, within a specified period of time not pass, the system
will automatically cancel the user’s access Permissions.
Adjustable normally open or normally closed, in order to meet the requirements of different venues.
Compatible with a most reader device, integrate via dry contact signal.
Unidirectional or bidirectional control of personnel access.
Remote control and management by the management computer.
Fail-Safe mode to meet fire safety requirements
Specification of Flap Barrier Gate - ST-SW-03
| Power Voltage | AC220+10%,50Hz |
| Drive Voltage | AC24V5A |
| Open Angle | 90° |
| Pass Speed | Less than 35 person/minutes |
| Structure | Frame on 304 Stainless Steel Cover |
| Open Direction | Single / Double (Bi-directional) |
| Work Environment | Indoor / Outdoor |
| IP Rating | IP43 |
| Width of Passage | <550mm |
| Length of Bar | 600-900mm |
| Operation Condition | -15°C – 60°C |
| Relative Humidity | 95% Non-Condensation |
| Service Life | > 5 million |
| Input Signal | 12V DC |
| Working Current | <2000mAh |
| Dimension | 1600 x 180 x 990mm (Long*Width*Height) |
The best vehicle arm barrier gate for security access in Malaysia

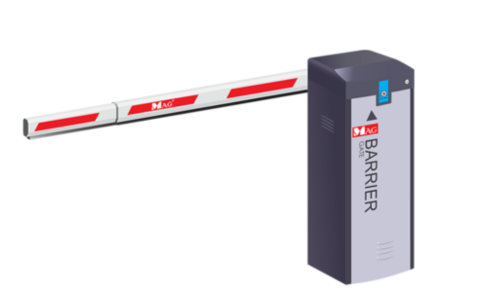

Vehicle Arm Barrier Gate - ST200
Vehicle Arm Barrier Gate -ST200 usually work neither standalone or access control system.Â
- Ensure the safety and security of specific area especially private residential,construction site or commercial area.
- Work with RFID Cards, Auto-pay, parking ticketing system, or biometric face/fingerprint solution.
- Combination of unique lever design and smart motor control allow swift arm movement that reduces bouncing at end position.
- Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
- Additional photo beam sensor can be added to further enhance safety.
- Built-in MCB to protect against any electric hazard.
Specification of vehicle arm barrier gate - ST200
| Type | Straight Boom |
| Opening & Closing Time | 3 meter : 1.5s |
| 4 meter : 3s | |
| 6 meter : 6s | |
| Voltage | 220V/110+-10% |
| Frequency | 60Hz/50Hz |
| Motor Power Consumption | 100W |
| Working Temperature | -40 – 85 |
| Housing Dimension | 330 x 230 x 1030 mm (Width*Depth*height) |
| Weight not including Barrier Boom | 45kgs |
| Drive | Torque Motor |
| Maximum Remote Control Distance | 30 meters |
